New Equipment » Kawasaki » Bayou® 250
Model Quick Search

Call for Price
(660) 627-1727

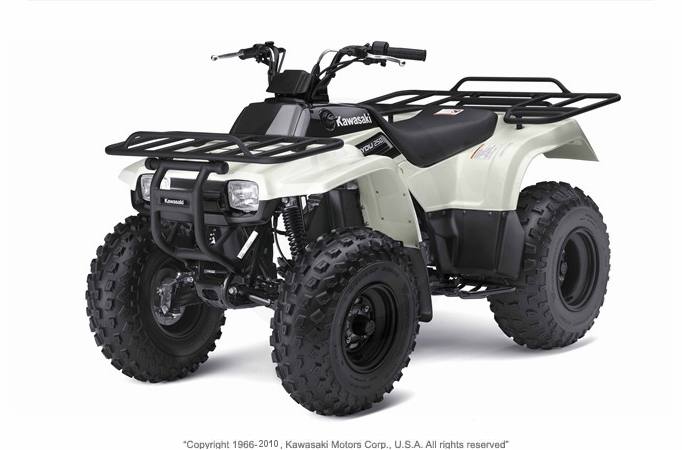

2009 Kawasaki Bayou® 250
Request a Quote Financing Calculator
Request a Quote Financing Calculator
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    228cc air-cooled four-stroke engine
    • Smooth and reliable
    • Hassle-free electric starter and a recoil back-up
    Transmission
    • Five-speed manual transmission keeps thing simple
    • Shaft drive is reliable, quiet and very low maintenance
    Chassis and Suspension
    • Independent A-arm suspension up front offers stable and comfortable ride
    • Only ATV in its class with semi-independent rear suspension
    • Cargo racks can carry a combined weight of 110 pounds
    • Triple drum brakes
    Additional Features
    • Easy-to-read fuel gauge allows the rider to check the fuel level at a glance
    • 12-volt accessory connector to provide quick and easy power to your electrical accessories.
    • It can tow 450 pounds
    Specifications
    • Engine: Air-cooled, four-stroke, single cylinder
    • Displacement: 228cc
    • Bore x stroke: 69.0 x 61.0mm
    • Compression ratio: 8.9:1
    • Carburetion: Mikuni VM24SS
    • Ignition: Solid state with electronic ignition backup
    • Transmission: Five-speed-plus reverse with automatic clutch
    • Final drive: Shaft
    • Frame: Double cradle, steel
    • Suspension front / wheel travel: Single A-arm, independent / 4.5 in.
    • Suspension rear / wheel travel: Semi-independent Quad-Link with dual shocks / 4.9 in.
    • Front tire: AT21x8-9 tubeless
    • Rear tire: AT22x10-10 tubeless
    • Front brakes / rear brake: Dual drums / Drum
    • Overall length: 70.1 in.
    • Overall width: 40.2 in.
    • Wheelbase: 43.9 in.
    • Ground clearance: Center of chassis – 7.5 in., at rear axle – 6.1 in.
    • Seat height: 28.7 in.
    • Lighting: 25W x 2
    • Rack capacity, front / rear: 44 / 66 lbs.
    • Towing capacity: 450 lbs.
    • Fuel capacity: 2.6 gal.
    • Dry weight: 425.6 lbs.
    • Instruments: Neutral indicator, reverse indicator
    • Color choices: Woodsman Green, Polar White or Sunbeam Red
    • Good Times™ Protection Plan: 12, 24, 36 or 48 months
    • Warranty: 12 Months

    Specifications

    Engine
    Engine Type Four-stroke
    Displacement 228 cc
    Bore x Stroke 69.0 x 61.0 mm
    Cylinders Single
    Engine Cooling Air-cooled
    Fuel System Mikuni VM24SS
    Chassis
    Front Suspension Single A-arm, independent
    Front Travel 4.5 in.
    Front Brake Type Dual drums
    Front Tires AT21x8-9 tubeless
    Rear Travel 4.9 in.
    Rear Suspension Semi-independent Quad-Link with dual shocks
    Rear Brake Type Drum
    Rear Tires AT22x10-10 tubeless
    Frame Double cradle, steel
    Dimensions/Capacities
    Dry Weight 425.6 lbs
    Front Rack Capacity 44 lbs
    Rear Rack Capacity 66 lbs
    Towing Capacity 450 lbs
    Fuel Capacity 2.6 gal
    Ground Clearance Center of chassis: 7.5 in.; At rear axle: 6.1 in.
    Machine Dimensions (LxWxH) 70.1 x 40.2 x 28.7 in. (seat height)
    Wheelbase 43.9 in.
    Drive Train
    Final Drive Shaft
    Transmission Five-speed-plus reverse with automatic clutch
    General
    Lighting 25W x 2
    Colors Woodsman Green, Polar White or Sunbeam Red
    Warranty Warranty: 12 Months; Good Times™ Protection Plan: 12, 24, 36 or 48 months

    Compare Models

    		 Print








    Year 2009
    Manufacturer Kawasaki
    Model Bayou® 250
    Style Utility
    MSRP* $3,099.00
    Chassis
    Front Suspension Single A-arm, independent
    Front Travel 4.5 in.
    Front Brake Type Dual drums
    Front Tires AT21x8-9 tubeless
    Rear Suspension Semi-independent Quad-Link with dual shocks
    Rear Travel 4.9 in.
    Rear Brake Type Drum
    Rear Tires AT22x10-10 tubeless
    Frame Double cradle, steel
    Dimensions/Capacities
    Dry Weight 425.6 lbs
    Front Rack Capacity 44 lbs
    Rear Rack Capacity 66 lbs
    Towing Capacity 450 lbs
    Fuel Capacity 2.6 gal
    Ground Clearance Center of chassis: 7.5 in.; At rear axle: 6.1 in.
    Machine Dimensions (LxWxH) 70.1 x 40.2 x 28.7 in. (seat height)
    Wheelbase 43.9 in.
    Drive Train
    Drive Train
    Final Drive Shaft
    Transmission Five-speed-plus reverse with automatic clutch
    Engine
    Engine Type Four-stroke
    Displacement 228 cc
    Bore x Stroke 69.0 x 61.0 mm
    Cylinders Single
    Engine Cooling Air-cooled
    Fuel System Mikuni VM24SS
    Starting System
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting 25W x 2
    Colors Woodsman Green, Polar White or Sunbeam Red
    Warranty Warranty: 12 Months; Good Times™ Protection Plan: 12, 24, 36 or 48 months

    Current Promotions

    There are currently no promotions available for this product.
