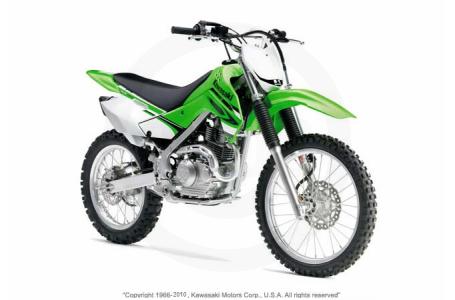

2008 Kawasaki KLX™140L
Request a Quote Financing Calculator
Request a Quote Financing Calculator
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Reliable & easy to use engine
    • New 144 cc air-cooled single-cylinder engine offers a lightweight power plant that is both simple to operate and to maintain
    • Bore and stroke of 58.0 x 54.4mm
    • Engine revs easily and allows riders to use the full range of the engine up to the rev limiter at 10,500 rpm
    • Exhaust pipe is curved to achieve optimum length for good power character yet remain unobtrusive
    • Quiet-running muffler comes equipped with a USFS approved spark arrester, meaning the KLX140/140L can access designated public off-road riding areas
    • Oil-moistened air-filter is washable, reusable, highly effective in dusty situations and easily serviced
    Electric start
    • Starting is via a (keyless) electric starter button just in front of the upper triple clamp
    • Starter button features an orange LED light activated when the button is depressed, indicating that the power is “ON”
    • Digital CDI ignition helps ensure quick, reliable starting
    Carburetor
    • Based on the oval piston-valve Keihin PB20, the carburetor features several Kawasaki-original modifications to provide stable fuel delivery under rough off-road conditions
    • Partitions in the float chamber keep the fuel from sloshing excessively and an umbrella around the main jet traps fuel when jumping
    • Dual air vents help provide a stable fuel supply and eliminate hesitation, even when the bike is at extreme lean angles
    • Needle valve is suspended on a spring which acts like a shock absorber
    • Float is rubber instead of plastic
    Close-ratio transmission
    • Close gear ratios help the acceleration performance of the KLX
    • Like the KX models, the shift lever features a ball bearing to ease shifting and has a folding tip for less damage in a crash
    Progressive manual clutch
    • Manual clutch offers young riders the chance to master clutch engagement and gear shifting
    • A spring damper in the clutch gives it a 2-stage engagement that permits half-clutch use when riding at extremely low rpm or idling speeds and helps provide direct clutch feel and better durability
    Box-section perimeter frame
    • Ready for the off-road abuse, the highly rigid, KX-inspired high-tensile steel perimeter frame also uses the same upper tubes as the KLX250S
    • Aluminum swingarm offers both light weight and strength and a hairline finish like on the KX machines
    • KX-style chain adjusters allow precise adjustment of the chain
    Superior suspension
    • 33mm telescopic front fork has spring rates and damping settings specific to each model
    • KLX140 rear shock features 5-way preload adjustability
    • Intended for a higher average speed, the KLX140L features a rear shock with piggyback reservoir with fully adjustable preload, 4-way compression damping and 22-way rebound damping
    • Higher-grade KLX140L rear shock body and reservoir are aluminum and can also be mounted on a standard KLX140
    KX-style wheels
    • Strong, high-grade die-cast hubs that offer the same durability as those found on the KX
    • Durable, lightweight RK EXCEL aluminum rims.
    • KLX140 and KLX140L offer two sizes to choose from, 17/14-inches front/rear and 19/16-inches front/rear, respectively
    Petal disc brakes front & rear
    • Front 220mm petal disc and large-bore 27mm twin-piston caliper (same size as those on the KX450F/250F) for strong and easy-to-control braking.
    • Front brake master cylinder is same model as used on the KLX250S
    • Rear wheel is slowed by a 186mm petal disc gripped by a 27mm single-piston caliper.
    • Rear brake master cylinder features a large-volume, unitized reservoir that contributes to stable braking and helps ensure sufficient fluid pressure is maintained - even when the brake pad wears down
    • In addition to helping reduce unsprung weight, the wave shapes of the petal discs help clean the brake pads for more efficient braking performance
    Ergonomics
    • Footpeg/frame relationship is modeled after the KX for maximum leg grip
    • Combination of the flat surface of the frame’s box-section, long footpegs mounted close to the bikes’ centerline and no kick-start lever add up to good grip and a high level of machine control available to the rider
    • Handlebar is rubber-mounted for reduced vibration transferred to the rider’s hands
    • It is easy to install an aftermarket handlebar thanks to the two-piece upper triple clamp and handle clamp
    • Raised pattern on half of the surface of the grips just like the top-class MX racers
    • Two-tone seat cover with a slip-resistant top surface for good grip when seated and smooth sides for excellent rider mobility
    Sharp, aggressive styling
    • Box-section perimeter frames, high-grade suspension and KX-style wheels, the KLX140 and KLX140L have the performance to back up their sharp, aggressive design and new advanced styling similar to that found on the KX racers
    Bodywork
    • Two-piece shrouds with ventilation holes inspired by the top-of-the-line KX race machines
    • Fuel tank cover presents a flush transition from tank to shroud, and contributes to the high level fit and finish
    • Eye-catching box muffler design protrudes as little as possible from behind the side cover, and features a plastic muffler end-cap that offers a surface cooler to the touch than steel
    Specifications
    • Engine: Four-stroke, SOHC, two-valve single
    • Displacement: 144cc
    • Bore x stroke: 58.0 x 54.4mm
    • Compression ratio: 9.5:1
    • Cooling: Air
    • Carburetion: Keihin PB20
    • Ignition: CDI
    • Transmission: Five-speed with wet multi-disc manual clutch
    • Final drive: Chain
    • Frame: High-Tensile steel, box-section perimeter
    • Rake / trail: 27 degrees / 3.8 in.
    • Front suspension / wheel travel: 33mm telescopic fork / 7.1 in.
    • Rear suspension / wheel travel: UNI-TRAK® linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping / 7.1 in.
    • Front tire: 70/100-19
    • Rear tire: 90/100-16
    • Front brake / rear brake: Single 220mm petal disc with a dual-piston caliper / Single 186mm petal disc with single-piston caliper
    • Overall length: TBD
    • Overall width: TBD
    • Overall height: TBD
    • Ground clearance: 10.0 in.
    • Seat height: 31.5 in.
    • Dry weight: 198
    • Wheelbase: 50.6 in.
    • Fuel capacity: 1.5 gal.
    • Color: Lime Green
    • Warranty: 6 months base warranty

    Specifications

    Engine
    Engine Type Four-stroke, SOHC, two-valve single
    Displacement 144 cc
    Bore and Stroke 58.0 x 54.4 mm
    Cooling Air
    Compression Ratio 9.5:1
    Fuel System Keihin PB20
    Ignition CDI
    Chassis
    Front Suspension 33 mm telescopic fork; Wheel travel: 7.1 in.
    Front Brakes Single 220 mm petal disc with a dual-piston caliper
    Front Tire 70/100-19
    Rear Suspension UNI-TRAK® linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping; Wheel travel: 7.1 in.
    Rear Brakes Single 186 mm petal disc with single-piston caliper
    Rear Tire 90/100-16
    Dimensions
    Dry Weight 198 lbs
    Fuel Capacity 1.5 gal
    Wheelbase 50.6 in.
    Ground Clearance 10.0 in.
    Seat Height 31.5 in.
    Trail 3.8 in.
    Rake 27°
    Transmission
    Transmission Five-speed with wet multi-disc manual clutch
    Final Drive Chain
    General
    Colors Lime Green
    Warranty 6 months base warranty

    Compare Models

    		 Print








    Year 2008
    Manufacturer Kawasaki
    Model KLX™140L
    Style Off-Road
    MSRP* $2,999.00
    Chassis
    Front Suspension 33 mm telescopic fork; Wheel travel: 7.1 in.
    Front Brakes Single 220 mm petal disc with a dual-piston caliper
    Front Tire 70/100-19
    Rear Suspension UNI-TRAK® linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping; Wheel travel: 7.1 in.
    Rear Brakes Single 186 mm petal disc with single-piston caliper
    Rear Tire 90/100-16
    Dimensions
    Dry Weight 198 lbs
    Fuel Capacity 1.5 gal
    Wheelbase 50.6 in.
    Ground Clearance 10.0 in.
    Seat Height 31.5 in.
    Trail 3.8 in.
    Rake 27°
    Engine
    Engine Type Four-stroke, SOHC, two-valve single
    Displacement 144 cc
    Bore and Stroke 58.0 x 54.4 mm
    Cooling Air
    Compression Ratio 9.5:1
    Fuel System Keihin PB20
    Ignition CDI
    General
    Colors Lime Green
    Warranty 6 months base warranty
    Transmission
    Transmission Five-speed with wet multi-disc manual clutch
    Final Drive Chain
